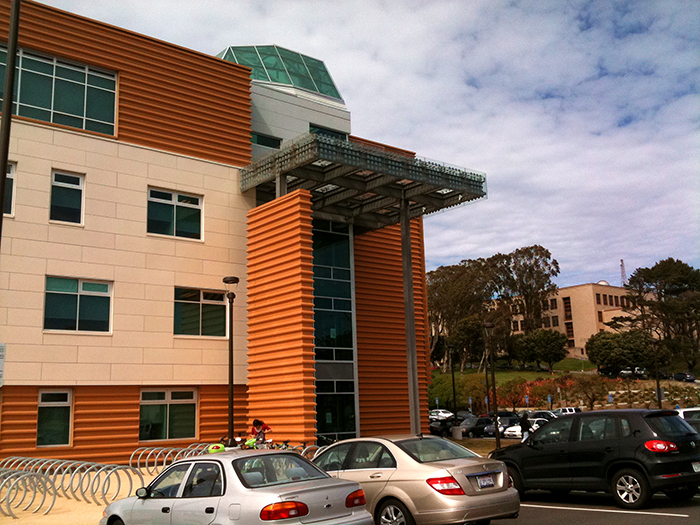

City College of San Francisco (CCSF)

Project Detail
Installed Power: 2075W
Location: San Francisco, California, USA
Area: 147.28m2
Supporting and Fixing Method:Point Fixing

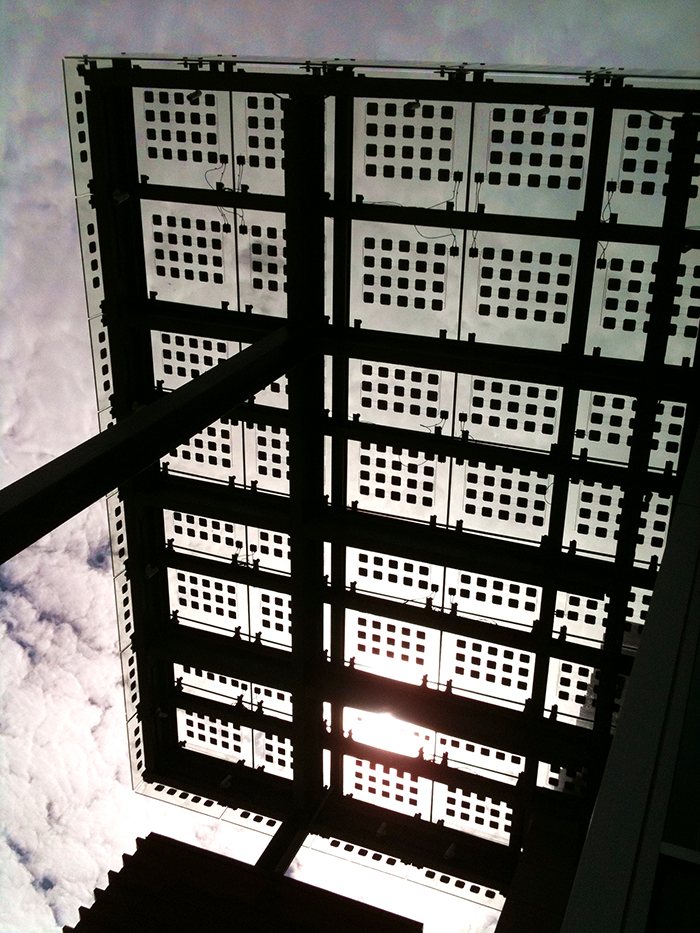

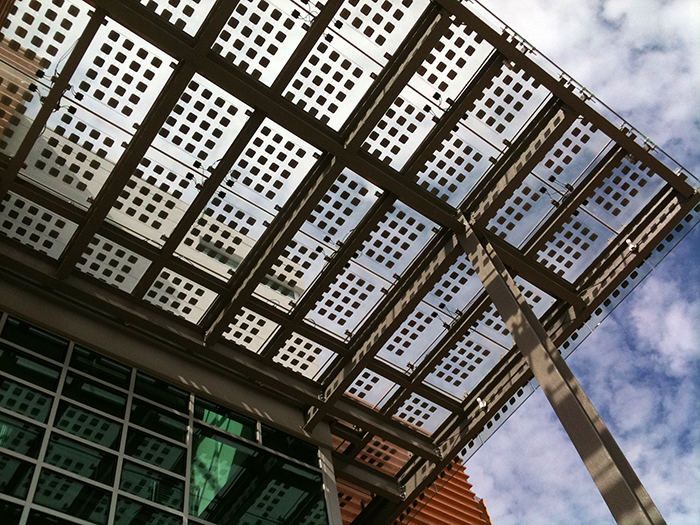

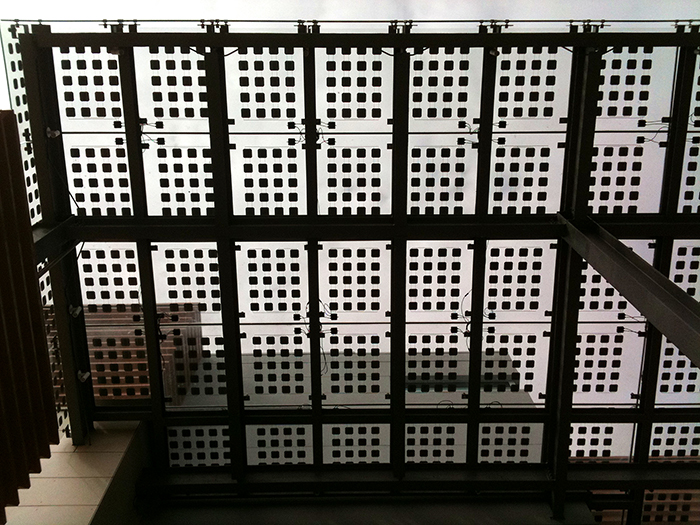

Feature: Double-glazed BIPV modules are used on the canopy top of the building entrance to reach the advertising effect. Point fixing is adopted to provide elegant appearance and simple structure.

Module Technical Data
Module: 6mm clear low iron tempered glass + Trosifol PVB + cell layer + 12mm clear low iron tempered glass
Module Size: 1136.7x1330.3mm
Peak Power: 50Wp
Cell Type: 125x125mm Monocrystalline
Glass: Tempered, Heat Soak
Transmittance: 80%
Type of Connection: Junction box on the back
