Shenzhen Stock Exchange operations Center

Project Detail
Completion Date: 2012
Installed Power: 87.9KW
Location: Shenzhen
Supporting and Fixing Method: Hidden Frame
Module Technical Data
Module: 3.2mm Low Iron Tempered Glass + PVB and Cell Layer +3.2mm Tempered Glass
       5mm Low Iron Tempered Glass + PVB and Cell Layer +5mm Tempered Glass
Cell Type: 125×125mm Monocrystalline
Glass: Tempered, Heat Soak
Transmittance: 53%, 57%
Types of Connection: Junction Box on the side

Architect: OMA

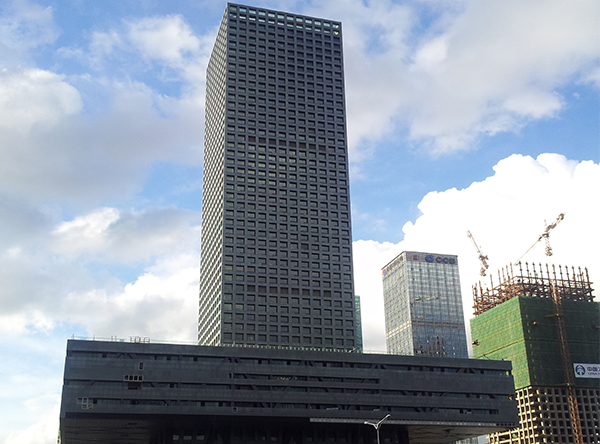

The Shenzhen Stock Exchange Operations Center, designed by OMA Architects, is located in the newly CBD in Shenzhen, it reaches to 250 meters in height and totally 26thousand square meters for office space. Named the China NASDAQ, this operation building will be the new financial center in China.
As the governments are paying increase attention to the environmental protection and energy saving industry, BIPV products and concept are widely recognized through use of them into their newly-developed buildings by some enterprises and institutions who have the longterm strategic aims and great sense of social responsibility. Shenzhen Stock Exchange operation sets a good sample for all as one of the most famous green and intelligent buildings.
