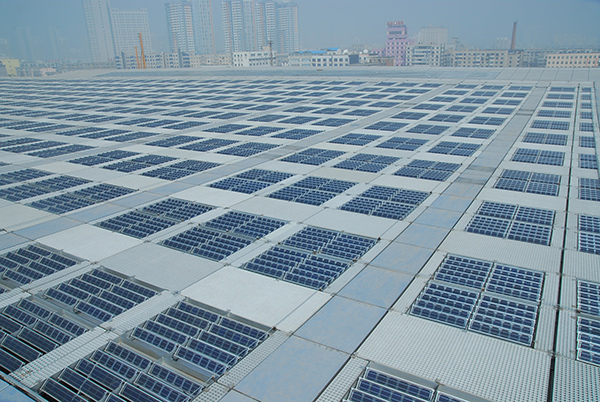

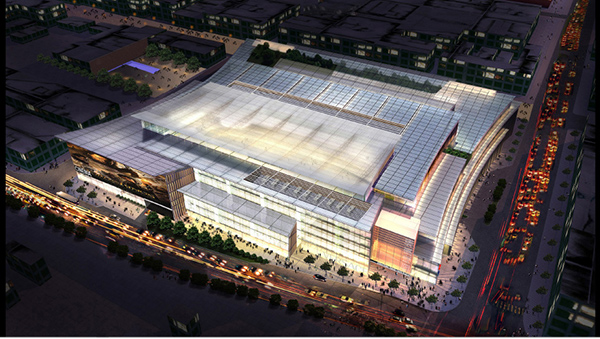

Middle Street Square of Shenyang Hang Lung Properties
Project Detail:
Completion:2010
Installed Power:147KW
Location:Shenyang, Liaoning
Area:1580m2
Module Technical Data
Module:8mm low iron solar glass + PVB and cell layer +8mm glass
Module Size:170×960mm
Peak Power:15Wp
Cell Type:125×125mm Monocrystalline
Glass:Tempered, Heat Soak
Transmittance:45%

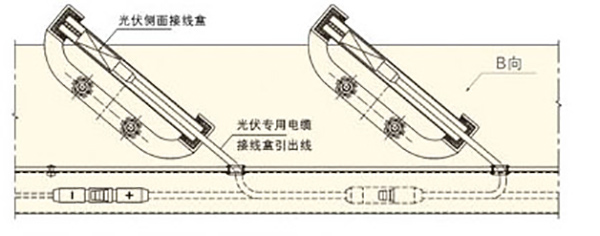

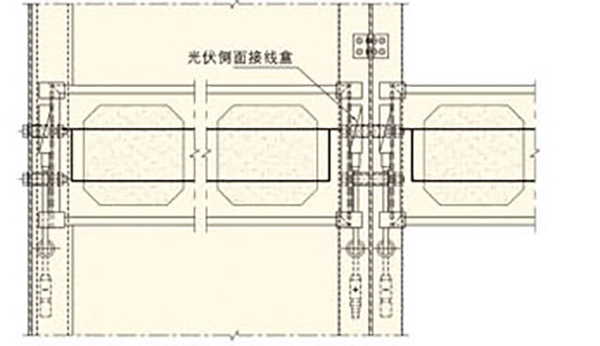

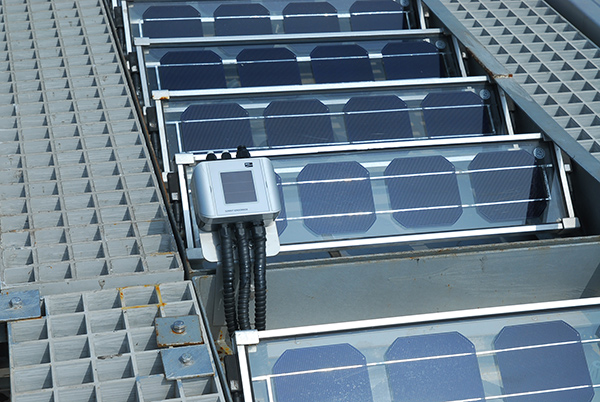

Types of Connection:Junction Box on the side

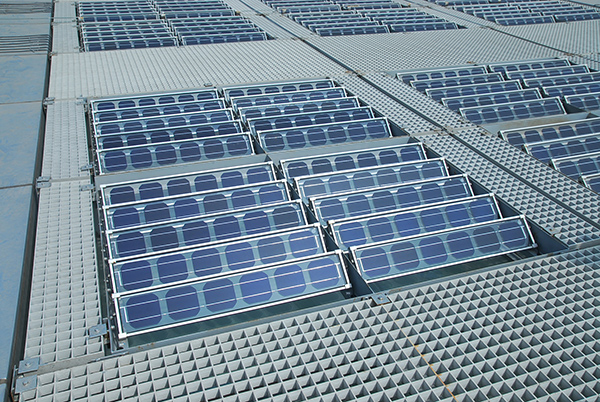

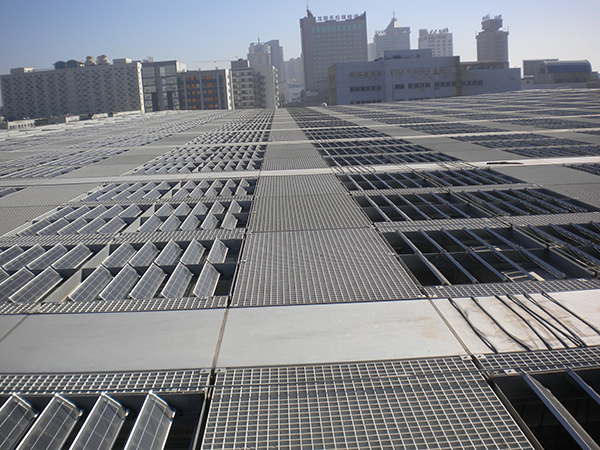

Feature: It is the first large BIPV shading system in China and it remains in good condition in a cryogenic temperature.
